Rolling Steel Fire Shutters
Ottawa Fire Safety is pleased to provide & install Rolling Steel Fire Shutters to the community.
These fire shutters are ideal for larger and more unique openings. They also offer a higher fire rating, making them suitable for use in industrial and commercial spaces.
Ideal applications
Roller fire shutters / fire doors are ideal for larger openings such as:
-
Patio Doors
-
Schools / Commercial Areas
-
Industrial Garages
-
Service Counter
-
Arenas
-
Gyms
-
Larger Windows
-
and more!
Fire Ratings
Available fire ratings:
-
3/4 hours (45mins)
-
1 1/2 (90mins),
-
3 hours (180mins)
-
4 hours (240mins)
Every product is provided with a ULC certification tag and is Ontario Building & Fire Code compliant
Sizing
Minimum size: 1'6" wide
Maximum size: 13' wide x 9' high
Need something bigger? Contact us!
Available options
- Stay open models
-
Most economical
-
Stays open, shuts only during testing or fire
- Push up models
-
Great for service counters
-
Freedom to open, close and lock
- Industrial service models
-
Biggest alternatives
- Motorized models
-
Remote control to open or close
-
Can be linked to fire alarm system
Installation Examples
Ideal for Service Counters

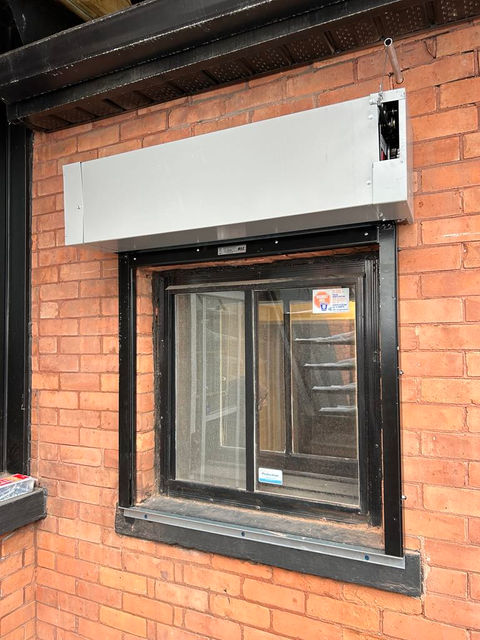

Ideal for Larger Windows

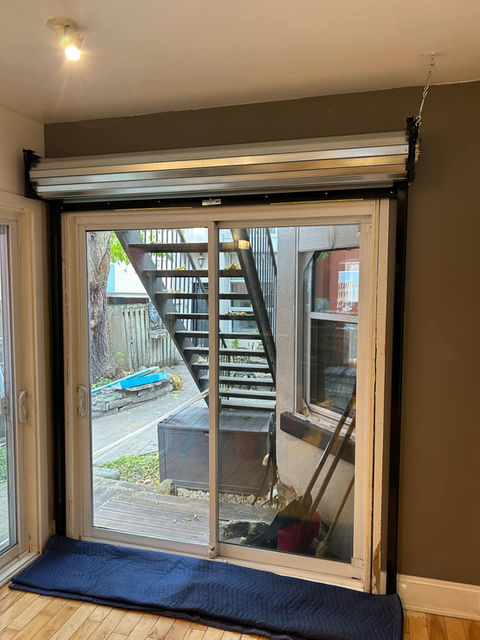

Ideal for Patio Doors
How they Work
Fusible link
The fusible link is a heat-sensitive device that holds the fire shutter in the open position. It is typically made of a metal alloy that melts at a specific temperature.
Testing / maintenance
Regular testing and maintenance of the entire system are crucial to ensure proper functionality during an emergency.
Activation
When a fire occurs, the heat from the flames causes the fusible link to melt. Once it melts, it releases the mechanism that holds the F/R closure open, allowing it to close automatically.
Closure
The closing of the shutter creates a barrier that helps contain the fire and smoke, protecting other areas of the building.
Check out our video!

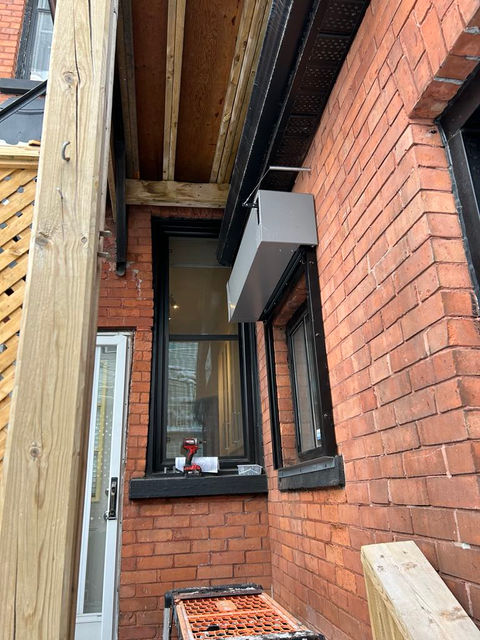

What does a fusible link look like?
-
Non-invasive Installations
-
Economical and Cost Effective
-
Ideal for Typical Windows
-
Canadian Made
-
ULC Certified
